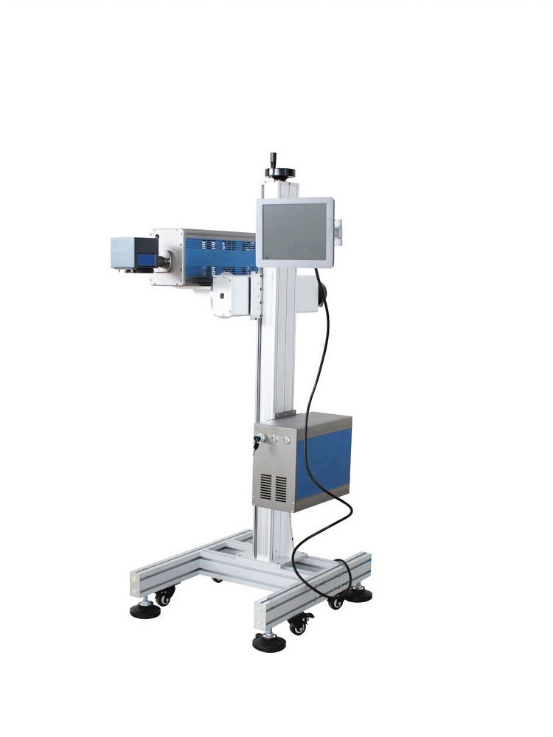

Laser Coding Machine

The laser printer uses the high-density heat of the laser to make a fast and beautiful mark on the object that needs to be marked.

Description

Laser Marker

The laser printer uses the heat of the high-density laser to produce a fast and beautiful mark on the object to be marked.

The advantages of laser printers are as follows.

1. Reduce production costs, reduce consumables, and improve production efficiency.

2. The anti-counterfeiting effect is obvious, and the laser coding technology can effectively prevent the counterfeiting of the product logo.

3. It is conducive to product tracking and recording. The laser printer can print the batch number, production date, and layer of the product. So each product can get good tracking performance.

4. By increasing the added value, the product can look better. Increase the visibility of the product brands.

5. The equipment is reliable. The laser marking machine has a mature industrial design. The performance is stable and reliable. It can work continuously for 24 hours. The maintenance-free time of the laser is more than 20,000 hours. The temperature range is wide (5 ℃ -45 ℃), which is widely used in the production and packaging fields of various industries.

6. environmental protection and safety, the laser coding machine does not produce chemical substances harmful to the human body and environment. Complies with GB7247-87; GB10320-88 standard, it is a high-tech environmentally friendly product.

7. The laser printer can print a large amount of data in a very small area. The laser can be marked on the product material itself with a very thin beam. The printing accuracy is extremely high, the control is precise, and the printing content is interpreted clearly and perfectly. Strong competitiveness in the market and environmental protection and safety, without any corrosiveness, completely isolated from chemical pollution, it is also a kind of intimate protection for the operator, ensuring a clean and orderly production site, reducing post-investment and reducing noise pollution.

Technical parameters

1. laser type: CO2 laser machine

2. marking speed: 0-7000mm/s

3. Laser life: ≥20000h

4. Marking line width: 0.1-3mm (depending on material).

5. working system:24H

6. input power: 600W

7. power stability: ±5% (Max).

8. wavelength: 10.6μm

9. laser output power: 10W

10. laser cooling method: air cooling

11. type: CO2 laser machine

12. marking range: standard 100X100mm; 70X70mm-400mmX400mm optional.

13. focal length: standard 134mm (70 ~ 200mm optional)

14. number of lines: set the number of lines in the marking area as you like according to the information you want to know.

15. production line speed: > 60M / min

16. character height: 0.4 ~ 70mm (determined by the selected focal length and the character height set in the software)

17. font: different fonts in Microsoft Windows, you can edit the font

18. marking options: Text, logo, barcode, QR code, graphic, image, dot matrix; built-in multiple lasers marking special fonts, automatic serial number, batch number, and real-time clock, automatic production date and expiration date, etc.

19. display: Notebook

20. information input: keyboard input, USB, serial data communication, and other information input

21. operating system: Microsoft Windows

22. input for product detection: PNP / 12V Omron photoelectric product detector E3X-ZA41

23. interface: Ethernet, USB, RS232, multi-channel user-defined I / O

24. cooling: normal pressure forced cooling fan, no need for compressed air, extremely wide temperature adaptability, automatic air cooling, no special cooling considerations

25. protection class: IP43

26. operating temperature: 5 ℃-45 ℃.

27. Operating humidity: 10% -90% without condensation.

28. power consumption: AC220V, power less than 600W.

Hot Tags: laser coding machine, China laser coding machine manufacturers, suppliers, factory, Ink jet Printer, Coding Machine, Laser Coding Machine

Previous: No Information

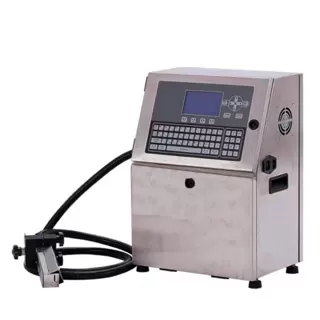

Next: Industrial Continuous Inkjet Printers
