GFHX-18 siphon liquid filling machine is mainly used for liquid filling with certain concentration and easy foaming, suitable for wine, red wine, rum whisky and other liquids that need to be bottled at the same level.
Products Description

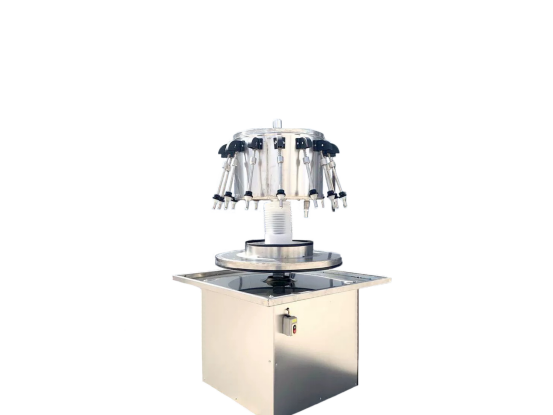

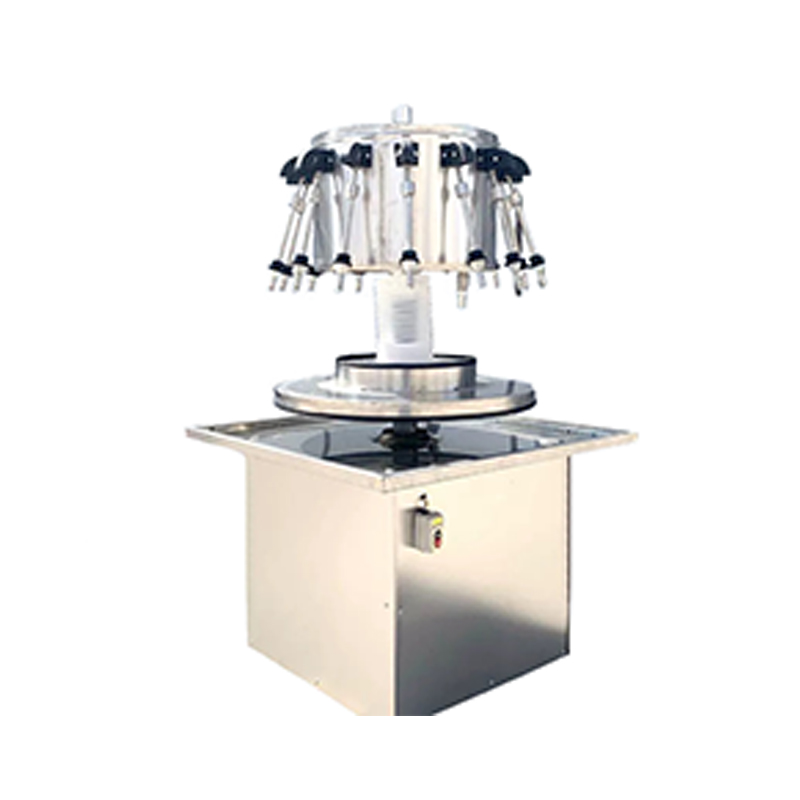

GFHX-18 siphon liquid filling machine is mainly used for liquid filling with certain concentration and easy foaming, suitable for wine, red wine, rum whisky and other liquids that need to be bottled at the same level. This machine can be combined with bottle washing machine, sealing machine, dryer, label unit into a packaging production line.The filling machine adopts siphonage principle, which is characterized by low power consumption, low noise, uniform and beautiful liquid level.
Main technical parameters
1. Work efficiency: 1000-1500 bottles per hour
2. Filling head travel: 23mm
3. Motor power: 0.37kw /380V
4. Form of adjustment: set the speed
5. Fit bottle type: < height > 50-380mm(can be customized beyond this range)
< bottleneck > 40-120mm(can be customized beyond this range)
6. External dimensions (length × width × height) : 650×650×1450mm
7. Material: the liquid contact part is 316 stainless steel
8. Filling accuracy: quantified by the liquid level in the bottle
9. Weight: 140kg-160kg
