4 Most Common Liquid Filling Methods of Filling Machines

Liquid filling machines play a crucial role in industries such as food and beverage, pharmaceuticals, cosmetics, and chemicals. These machines are designed to accurately and efficiently fill containers with a variety of liquid products. The method used for liquid filling depends on the type of liquid being filled, the required precision, and the production speed. In this article, we will explore the four most common liquid filling methods used by filling machines, and the factors that influence the choice of method.

1. Gravity Filling

Gravity filling is one of the simplest and most widely used liquid filling methods. As the name suggests, this method relies on gravity to fill containers. In a gravity filling machine, the liquid flows from a reservoir through a nozzle into a container, using gravity to regulate the flow of liquid.

• Best For: Gravity filling is ideal for thin, free-flowing liquids, such as water, juices, and alcoholic beverages.

• How It Works: The filling machine has a reservoir that stores the liquid. The liquid is then allowed to flow into the containers below through a valve that opens at the appropriate level. The machine can be set to stop filling once the container reaches the desired volume.

• Advantages: This method is simple, cost-effective, and suitable for products with a low viscosity. It is also low-maintenance and easy to operate.

• Disadvantages: Gravity filling machines may not be ideal for thicker liquids, as they may flow too slowly or unevenly. Additionally, this method may lack precision when filling containers of varying sizes.

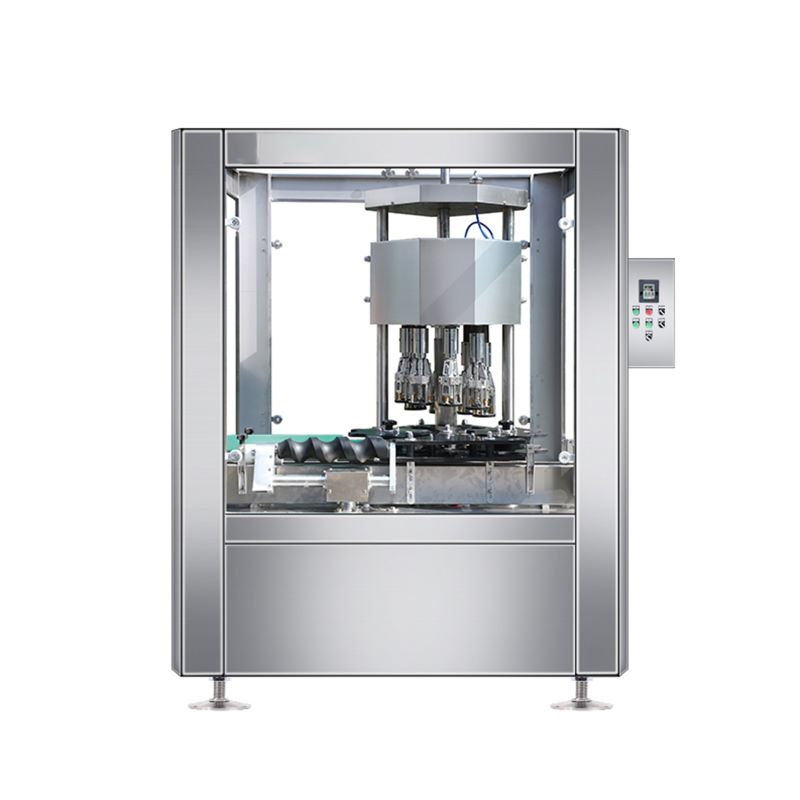

Automatic Stainless Stee Oral Liquid Filling Machine

2. Piston Filling

Piston filling is a more precise filling method that uses a piston to draw a specific volume of liquid from the reservoir and then dispense it into the container. This method is often used for thicker, more viscous liquids that do not flow easily under gravity.

• Best For: Piston filling is suitable for products with high viscosity, such as sauces, pastes, creams, oils, and shampoos.

• How It Works: In piston filling, a piston inside a cylinder pulls liquid into a chamber from a reservoir. When the piston moves forward, it pushes the liquid into the container through a nozzle, delivering a precise amount of liquid with each cycle.

• Advantages: Piston filling offers precise and accurate filling, especially for thicker liquids. It can handle a variety of container sizes and is often used in industries that require consistency in fill volume.

• Disadvantages: Piston filling machines are generally more complex and expensive than gravity fillers. They also require more maintenance due to the moving parts involved.

3. Vacuum Filling

Vacuum filling is another highly accurate method, especially useful for liquids that require careful handling to avoid spillage or aeration. This method uses a vacuum pump to draw liquid into a container, ensuring precise filling with minimal wastage.

• Best For: Vacuum filling is ideal for delicate liquids, such as carbonated beverages, oils, syrups, and products that require an airtight seal.

• How It Works: In a vacuum filling machine, the container is placed in a chamber where air is evacuated, creating a vacuum. The vacuum then pulls the liquid from the reservoir into the container. Once the desired volume is reached, the vacuum is released, and the container is sealed.

• Advantages: Vacuum filling offers high precision and is excellent for filling carbonated liquids, as it prevents air bubbles and foam from forming. It also minimizes product loss due to spillage or drips.

• Disadvantages: Vacuum filling machines are typically more expensive and complex than other filling methods. They also require careful monitoring to ensure the vacuum pressure is maintained correctly.

4. Overflow Filling

Overflow filling is a method that ensures consistent and precise filling by using an overflow tube to remove excess liquid. This method is particularly useful when uniformity across a large batch of containers is essential.

• Best For: Overflow filling is commonly used for beverages, especially non-carbonated liquids like milk, water, and juices, as well as personal care products like lotions and shampoos.

• How It Works: The container is filled to a preset level, and any excess liquid is allowed to overflow out of the container and into a drainage system. The container’s top edge is consistently reached with every fill, ensuring uniformity in the appearance of the product.

• Advantages: Overflow filling provides precise and uniform fills, which is essential when packaging products where the appearance of the container is important. It’s also suitable for high-speed production lines.

• Disadvantages: This method can result in product waste due to the liquid that overflows and is collected in a drainage system. It may also be less efficient for thicker liquids.

Choosing the Right Filling Method for Your Product

The right filling method depends on the type of liquid being filled, the production requirements, and the container specifications. Here are some factors to consider when choosing a filling method:

• Viscosity: For thin liquids, gravity or overflow filling methods may be sufficient. For thicker, more viscous liquids, piston or vacuum filling may be necessary to ensure accurate fills.

• Production Speed: Overflow and gravity filling methods are typically faster than piston and vacuum filling, making them more suitable for high-volume production. However, if precision is key, piston or vacuum filling may be worth the additional time and cost.

• Product Sensitivity: If your product is sensitive to air or foam (e.g., carbonated beverages), vacuum filling will help minimize product degradation.

• Cost and Maintenance: Gravity and overflow filling machines are generally less expensive and require less maintenance compared to piston and vacuum filling machines, which have more moving parts and complex systems.

Frequently Asked Questions (FAQs)

1. Can I use a gravity filling machine for thick liquids?

Gravity filling machines are best suited for thin to moderately viscous liquids. For thicker liquids, a piston or vacuum filling machine would provide more consistent and accurate results.

2. What is the difference between vacuum filling and overflow filling?

Vacuum filling uses a vacuum pump to draw liquid into the container, while overflow filling fills the container to a set level and removes excess liquid using an overflow tube. Vacuum filling is often used for delicate products, while overflow filling is ideal for achieving uniform fills in high-speed production lines.

3. Which filling method is best for carbonated drinks?

Vacuum filling is the best method for carbonated drinks because it prevents air bubbles and foam from forming during the filling process. This ensures the product maintains its carbonation and quality.

Conclusion

The right liquid filling method depends on the nature of the product, the desired accuracy, and the production speed. Each of the four filling methods—gravity, piston, vacuum, and overflow—has its unique advantages and disadvantages. By considering the viscosity of your liquid, the required fill accuracy, and the cost of operation, you can select the most appropriate filling machine for your production line. Understanding these methods will help you make an informed decision and ensure high-quality filling for your products.
