How Does a Liquid Filling Machine Work?

September 29, 2024

Liquid filling machines are essential tools in various industries, including food and beverage, pharmaceuticals, and cosmetics. Understanding how these machines function can help businesses increase efficiency, precision, and productivity. This article delves into the operational mechanisms of liquid filling machines, examining their components, types, and applications.


Components of a Liquid Filling Machine


To comprehend how a liquid filling machine works, it's vital to understand its main components. Typically, these machines consist of:


1. **Filling Head:** This is the component responsible for dispensing the liquid. It usually features nozzles or valves that accurately release the liquid into containers.

2. **Product Reservoir:** This holds the liquid to be filled. The reservoir is connected to the filling head and often includes sensors to monitor liquid levels and prevent overflow.

3. **Pneumatic or Electric System:** This drives the machine. Pneumatic systems use compressed air for motion, while electric systems rely on motors.

4. **Control Panel:** This is the user interface where operators can set parameters such as fill volume, speed, and cycle times.

5. **Conveyor System:** Many liquid filling machines are equipped with conveyors to transport containers into the filling zone, enhancing efficiency.

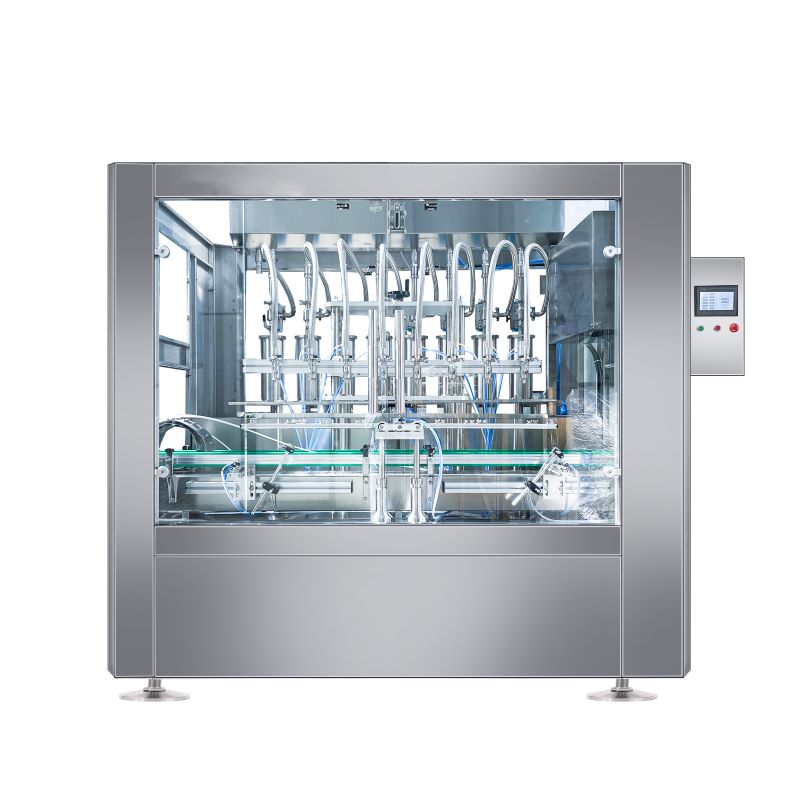

Liquid Filling Machine

Liquid Filling Machine


Types of Liquid Filling Machines


Liquid filling machines come in various types, each suited for different applications:


1. **Gravitational Filling Machines:** These use gravity to fill containers. The liquid flows from the reservoir through the filling head and into the container, making them ideal for thin liquids.

2. **Piston Filling Machines:** These machines utilize a piston mechanism to draw and dispense liquid. They are perfect for thick and viscous liquids, ensuring consistent fill volumes.

3. **Vacuum Filling Machines:** As the name suggests, these utilize a vacuum to suck liquid into the containers, making them suitable for foamy or sensitive liquids that could be affected by air.

4. **Peristaltic Filling Machines:** These machines use a series of rollers to compress and move the liquid through a tube. They are often utilized for sanitary applications, such as in the pharmaceutical industry.


How Do Liquid Filling Machines Work?


The operation of a liquid filling machine can be broken down into a series of steps:


1. **Preparation:** The machine is set up, and the control panel is programmed with the desired fill volume and cycle time.

2. **Container Placement:** Containers are positioned on the conveyor system, leading them to the filling area. Depending on the machine type, this can be automated or manual.

3. **Filling Process:** Once the container is in place, the filling head activates, drawing liquid from the reservoir. Depending on the machine type, the liquid is either dispensed by gravity, piston action, or vacuum.

4. **Completion:** After the desired volume of liquid has been filled, the filling head will close or retract, and the container is then transported out of the filling zone.

5. **Quality Control:** Many machines integrate sensors to monitor fill levels and ensure accurate dispensing, further improving product quality.


Benefits of Using Liquid Filling Machines


Investing in a liquid filling machine can bring numerous benefits:


1. **Increased Efficiency:** Automated filling processes reduce the time required for manual filling and increase production rates.

2. **Consistency and Accuracy:** Machines minimize human error, achieving accurate fill volumes every time, which is crucial for maintaining product quality.

3. **Cost-Effectiveness:** Despite the initial investment, businesses save on labor costs and waste reduction due to the precision of machine filling.


Common Questions About Liquid Filling Machines


1. What types of liquids can these machines fill?

Liquid filling machines can fill a wide range of liquids, from thin beverages to thick creams and gels, depending on their design.


2. How do I choose the right liquid filling machine?

Consider factors such as the viscosity of the liquid, desired production rates, and the accuracy required for your application.


3. Are these machines easy to maintain?

Most liquid filling machines are designed for easy cleaning and maintenance, but it's essential to follow the manufacturer's guidelines for optimal performance.


4. Can liquid filling machines be customized?

Yes, many manufacturers offer customizable solutions to meet specific industry needs and requirements.


5. How much do liquid filling machines cost?

Costs can vary significantly based on type, features, and capacity, ranging from a few thousand to tens of thousands of dollars.


In conclusion, liquid filling machines are vital in today’s production landscape, allowing businesses to enhance efficiency and maintain high quality in their products. Understanding how they work empowers companies to make informed decisions regarding their manufacturing processes.
