The whole machine is made of SUS304 stainless steel. The top design can open the cover completely. The side is provided with manhole observation port for easy cleaning and maintenance.
Products Description
The whole machine is made of SUS304 stainless steel. The top design can open the cover completely. The side is provided with manhole observation port for easy cleaning and maintenance.
Description

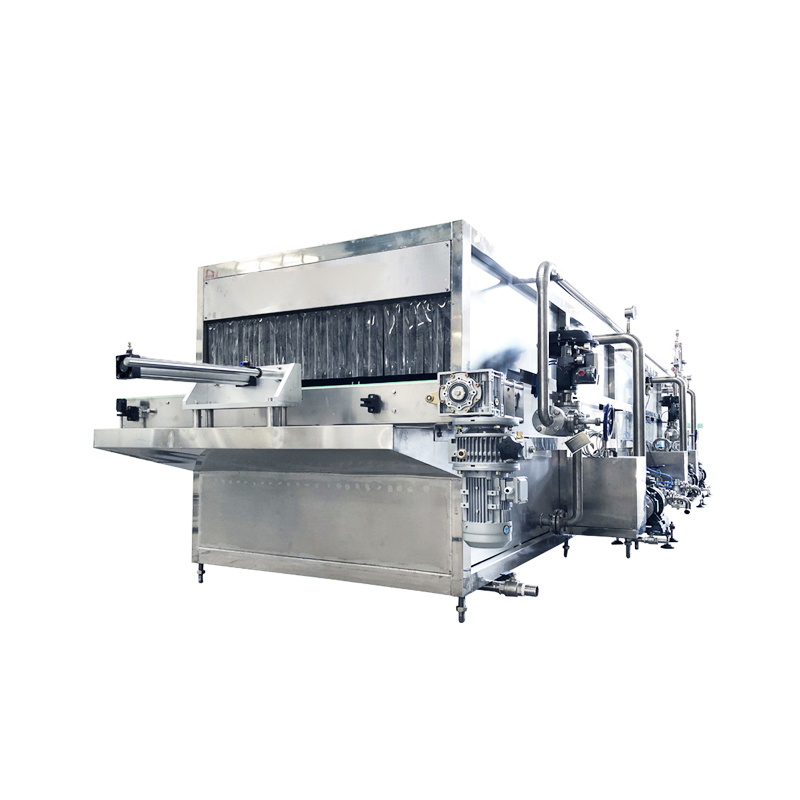

Spray sterilizing machine
1. The whole machine is made of SUS304 stainless steel. The top design can open the cover completely. The side is provided with manhole observation port for easy cleaning and maintenance.
2. High temperature resistant mesh belt chain can be freely adjusted by tension wheel mechanism.The nozzle adopts SUS304 mist control technology, spraying water evenly.Each temperature control section can realize free temperature control, constant temperature and cooling. The temperature can be set according to the user's needs, and the sterilization effect is good.The main engine is driven by frequency conversion technology and step less speed regulation, which enables the sterilization time to be effectively controlled and selected, and the equipment runs steadily and reliably.With each section reflux tank, recycling water resources, energy saving, reduce consumption, reduce waste.Appearance design beautiful, generous, simple. By changing the temperature control system parameters of the spray sterilizer, it can be used as a bottle warming machine in the low-temperature filling production of gas-containing drinks and beer, removing the condensed water on the surface of the container, keeping the bottle dry and clean, and facilitating labeling and packing operations behind the bottle line.The length and width of the equipment can be customized according to customers' different requirements.
Technical parameter
| Model | Dimension | Net belt speed | Steam pressure | Recycled water consumption | Power |
| PLJ-2000 | L6000*W1350*H1700mm | 0-482mm/min | 0.4Mpa | 21m3 | 9.37kw |
| PLJ-4000 | L12000*W1700*H1700mm | 0-482mm/min | 0.4Mpa | 25m3 | 11.37kw |
Hot Tags: spray sterilizing machine, China spray sterilizing machine manufacturers, suppliers, factory, Inverted Bottle Sterilizing Machine, Sterilizing Machine, Bottle Sterilizing Machine, glass bottle sterilization machine, Spray Sterilizing Machine, glass bottle sterilizer
