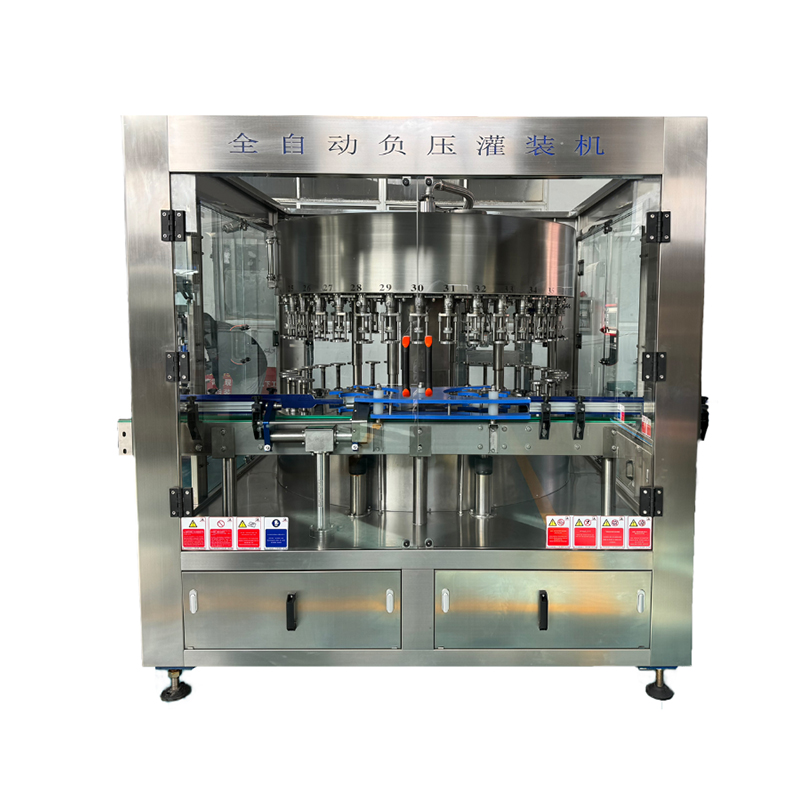

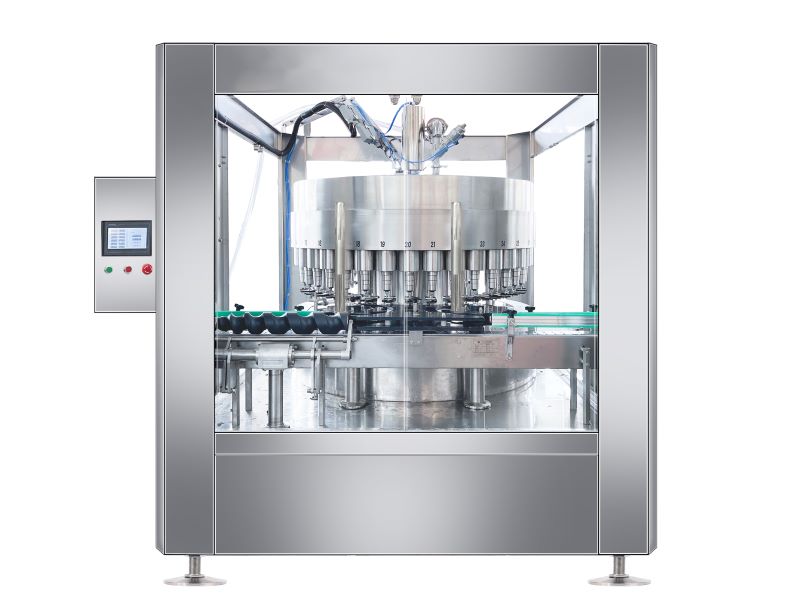

Automatic rotary negative pressure filling machine

MF's Automatic Rotary Negative Pressure Filling Machine is really a top-notch machine built to meet the needs of companies that want a simple yet effective and way that is reliable fill their products.

Products Description

Brand: MF



MF's Automatic Rotary Negative Pressure Filling Machine is really a top-notch machine built to meet the needs of companies that want a simple yet effective and way that is reliable fill their products. This machine that is effective designed to deliver accurate fills each time, ensuring that your products are often consistent and of the quality this is certainly highest.


The MF Automatic Rotary Negative Pressure Filling Machine combines advanced level technology with simple procedure, which makes it a bit of cake to use and keep. The gear is fully automated, meaning it could operate with no need for virtually any intervention this is certainly manual. The control that is integral also means that the equipment is running at peak performance and effectiveness all the time.


The MF Automatic Rotary Negative Pressure Filling Machine is actually a versatile addition to any production facility to be able to manage a range of products and services and sizes. All of it whether you are filling foods, beverages, or home chemicals, this device are designed for. Its rotary design also means it perfect for high-volume production surroundings so that it can fill many containers quickly, making.


Among the list of key top options that come with the MF Automatic Rotary Negative Pressure Filling Machine is its stress that is negative system is filling. This method means that the merchandise is filled cleanly and accurately, minus the spills or leaks. The machine can also be built to reduce foaming, which helps to keep up because of the quality of the products.


The MF Automatic Rotary Negative Pressure Filling Machine is user-friendly and simple to make use of despite its power and enhanced functions. Its made out of a user interface this is certainly allows that are simple to quickly and easily adjust settings, monitor performance, and diagnose any dilemmas. This can allow it to be simple even for novice operators to make use of effortlessly the equipment and efficiently.


Finally, the MF Automatic Rotary Negative Pressure Filling Machine is made to last. Its sturdy construction and top-quality components make sure it's going to provide performance this is certainly reliable a long time. It is also made to be easy to keep, with simple cleaning and maintenance procedures that could be performed by your own staff.


Product informationThis machine is suitable for filling various kind of glass bottle for wine, vodka, whiskey, spirit, alcohol, soy sauce, vinegar etc. It has the advantage of no bottles no filling and with high filling accuracy. It has 12/18/24/36 nozzles for you to choose.Gofar machinery, will provide you the best solution for your products.If you are interested in this kind filling machine, pls feel free to contact us.


● Low vacuum filling: avoid the foaming and leaking, and if there is defects in the bottle, filling will not be started.

● Spraying filling: Liquid flows down along the sides of the bottles to ensure the filling quality

● No bottle broken: bottle holding devices can flexibly adjust bottle location, avoiding any possible bottle damage or even machine damage.

● Long service life and easy main- tenance.

Automatic rotary negative pressure filling machine


Description NameParametersParametersParametersParameters
ModelMFMFP-12MFMFP-18MFMFP-24MFMFP-36
No. of filling heads12182436
Production capacity per hour2000~2500bmp3000~4000bph5000~6000bph8000~10000bph
Applicable bottle height160~360mm, could customized
Filling accuracy±1.5 mm
Applicable bottleneck diameterΦ50-Φ100, could customized
Overall dimension(L*W*H)1200*1200*2200mm1500*1500*2200mm1800*1800*2200mm2500×2350×2200mm
Capability(b/h)30004500600010000
Weight700Kg900KG1500KG2000kg
Power1.121.121.853


Nice design touch screen +PLC system. It could use English and other language version. It is easy to operate and maintain. This is the negative pressure fan to blow the air out and will form a negative pressure environment for the filler tank. It is made by durable stainless steel and you will easy to maintain. This is the filling hose to let the liquid fall into the filler tanker. It is made by food grade stainless steel.


The whole machine is made by stainless steel made and it is anti-rust and easy to clean.For this filling machine can also be connected with other machines to form a production line.Filling valve precision structure, less sealing parts, reliable and durable. And the structure is simple, disassembly, cleaning convenient.The parts that contact with the filling liquid are made of high quality stainless steel to ensure that the filling liquid is not contaminated and meets the food hygiene standards.


① Filling nozzle: Its quantity can be customized according to the customer's output. Conventional models are: 12/18/24/36. It adopts touch switch design, no bottle no filling, not dripping

② Bottle feeding dial: Customized according to customer's bottle size, do not pour the bottle, do not destroy the bottle

③ Negative pressure blower: Through this blower, the internal pressure of the filling machine is reduced, so that the filling machine can reduce the generation of foam and improve the filling accuracy when filling.

④ Bottle feeding auger: It is also customized according to the customer's bottle type. Through this device, the bottles are transported to the filling machine in an orderly manner.

⑤ Control System: The control system is composed of PLC and other electrical components. It is an important part of the machine with well-known brands and reliable quality. It can provide customers with a 2-year free warranty, and can also choose specific brands of electrical components according to customer needs.

⑥ Control panel: The buttons of the control panel are connected to the control system to control the machine and conveyor line switches, as well as the operating speed and height


FAQ


Q1. How long will take for the delivery of product?

10 days for standard model, if machine in stock, will delivery immediately, customized model depend on customer requirements, usually about 20~30 days.


Q2. What's the insurance of after-sale service after purchase?

All our products, will be totally tested by QC department before delivery, with strict quality control process. The product is cost-effective during use, stable and reliable. One year warranty service for all machine, please feel free to contact us if you have any questions.


Q3. When the machine arrives at the work site, is it easy to install? How to solve the problem of quick installation and use?

All machine model with installation video, to show the installation process more intuitively, and we will provide remote video technical support to solve your doubts and ensure that your installation is correct.


Q4. During the use of the machine, how to get after-sale service?

We have professional foreign installation and commissioning engineers, which have many years of experience in foreign debugging with deeply recognized by customers. We will provide on-site installation and commissioning services for foreign customers, and we will guide your workers directly.


Q5. Will the accessories change frequently with machine?

The service life of the accessories is related to the daily maintenance. When ordering, we will give you free wearing parts and provide you with daily maintenance strategies.
