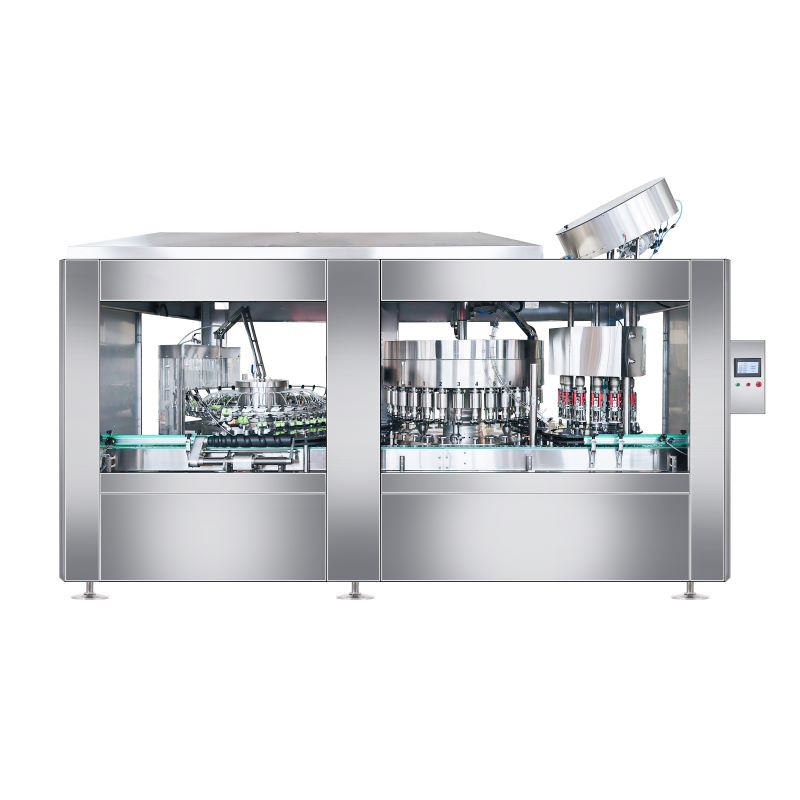

Liquor Bottle Filling Machine Wine High Speed automatic

Description

The MF Liquor Bottle Filling Machine may be the product that is ideal both big and wine that is small alcohol manufacturers. This machine is capable of quickly and effortlessly filling bottles of every size, supplying a frequent and dependable output each and every time insurance firms a high-speed automated design.

The Liquor Bottle Filling Machine features a screen this is certainly user-friendly enables easy setup and monitoring. Any issues that may arise with a touchscreen display, it really is simple to adjust the settings and troubleshoot. The device additionally features a indicator this is certainly built-in let users know as soon as the bottles are complete, ensuring that no overfilling happens.

The MF Liquor Bottle Filling Machine is made for durability and longevity. Made with top-notch materials, it really is created to withstand even the production that is many is demanding. Its size that is compact makes an easy task to move and transport, making certain it can be used in just about any manufacturing environment.

Another major benefit of the Liquor Bottle Filling device would be the fact that it comes down insurance firms a maintenance design that is low. This means users will not need certainly to spend hours cleaning the device after each and every usage, reducing the expenses which can be overall with production. Its versatility additionally allows for a selection of appropriate products, including wine, champagne, and liquor.

Security is really a priority that is top the MF Liquor Bottle Filling device. The gear is created with security features such as for instance a function this is certainly capping implies that the caps are securely tightened, preventing any spills or leaks. It comes down with a container detection system that immediately prevents the equipment in the event that containers are not properly put, avoiding any safety hazards.

The Liquor Bottle Filling device can also be eco-friendly, with a built to minimize waste and market sustainability. It features an design

Product Description

The filling line could be customized as your bottles, lids, output, working space to design. Contact us to get the solutions.

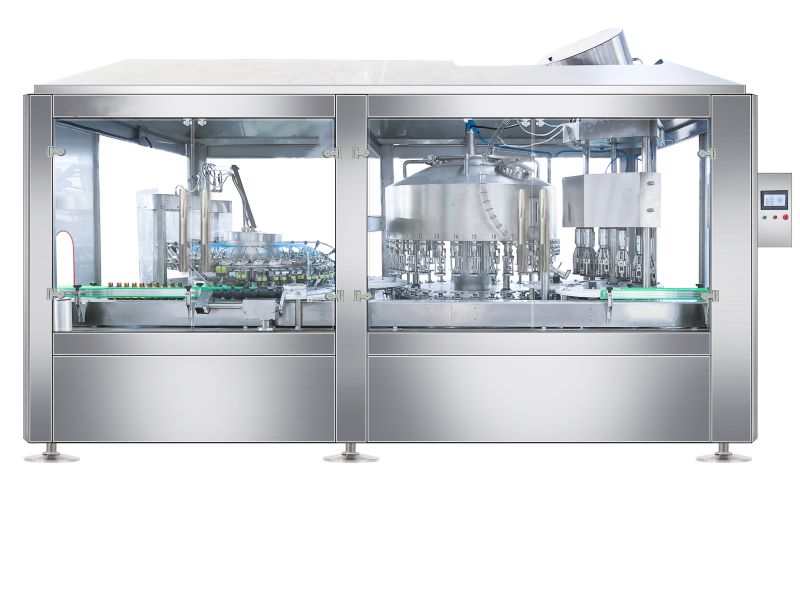

This liquid filling line is mainly used for wine, vodka, whiskey, spirit, soy sauce, vinegar and other foaming liquids filling. The filling line could be customized from A to Z or just including some parts of the whole line. The bottles inside and outside are rinsed by turning over the bottle, and then the low vacuum pressure principle is used for filling. The filling process is not foaming and with high precision. Capping part could designed for aluminium caps, plastic caps, corks, T corks, which can seal effectively. We can customized as your lids. And after capped, the bottles maybe will sticking labels, date printer or packing etc. Please contact us to get the professional solutions.

According to the customer's production requirements, we can configure different requirements of the wine production line. Now our company has Automatic Rotary Filler for wine bottle which equipped with 12/ 18/ 24/ 36/ 45 filler heads.

1. The machine including ringer filler capper function together,will save more space and improve working efficiency.

2. The monoblock machine with food grade SUS304 material.

3. The filling volume could be adjusted and could suitable for various size bottles via slight adjustment and changing related parts.

4. The machine with overload protection device.It is automatically shot down when bottles jams. At the same time, the buzzer emits a "beep-beep"safe alarm.

This liquid filling line is mainly used for wine, vodka, whiskey, spirit, soy sauce, vinegar and other foaming liquids filling. The filling line could be customized from A to Z or just including some parts of the whole line. The bottles inside and outside are rinsed by turning over the bottle, and then the low vacuum pressure principle is used for filling. The filling process is not foaming and with high precision. Capping part could designed for aluminium caps, plastic caps, corks, T corks, which can seal effectively. We can customized as your lids. And after capped, the bottles maybe will sticking labels, date printer or packing etc. Please contact us to get the professional solutions.

According to the customer's production requirements, we can configure different requirements of the wine production line. Now our company has Automatic Rotary Filler for wine bottle which equipped with 12/ 18/ 24/ 36/ 45 filler heads.

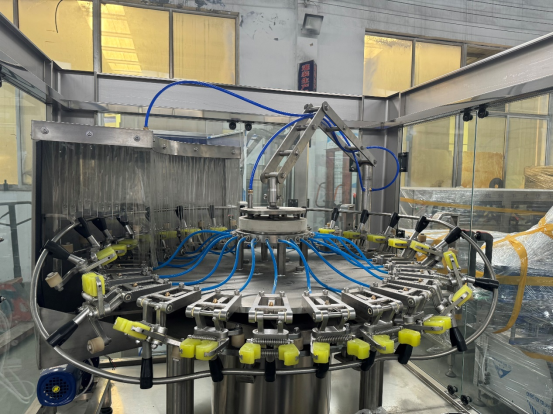

Details ShowingWashing Rinser

(1) Adopting flexible and powerful manipulators to grasp the bottle.

(2) Continuous follow-up flushing bottle has high efficiency and stable flushing effect.

(3) Adopt the international famous brand inverter to adjust the speed, and can be controlled freely.

(4) The flip manipulator developed has the advantages of accurate bottle positioning, free flipping movement, good flushing valve

sealing performance, large flushing force and accurate neutrality of the bottle mouth.

(5) The bottle guide screw and dial processed by the CNC engraving center are used to enter and exit the bottle, which effectively solves the problems of squeezing, jamming.

(6) After pressing the lifting button and replacing the corresponding bottle diameter dial, bottles with different bottle diameters and bottle heights can be replaced.

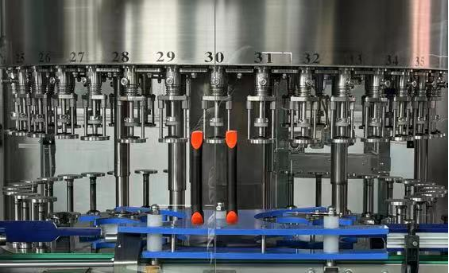

Filling part

(1) Large range: suitable for bottle diameter of 60-100mm, bottle height of 250-350mm, wide range of filling capacity and easy adjustment.

(2) Fully compatible: Various round containers such as glass, porcelain, plastic, and pottery bottles can be fully automated. The machine can be easily connected to the original various bottle delivery lines.

(3) Liquid level: The filling liquid level does not change with the bottle capacity, and the filling liquid level is the same.

(4) No dripping: The seal is tight and reliable, and the broken and leaking bottles and no bottles will not be filled automatically and will not be spilled.

(5) Non-breaking bottle: Adopt flexible bottle supporting device, the bottle height error can automatically adapt, soft start, soft brake, no rigid impact, and no damage to the bottle.

(6) The first to introduce foreign filling technology, using negative pressure equal filling valve, good bottle feeding guidance, fast liquid level filling speed, making the product better than the industry standard.

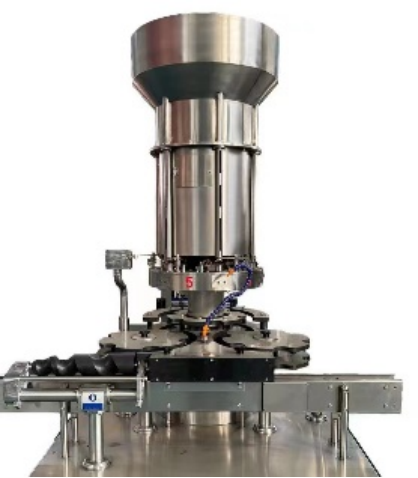

Capping part

(1) The structure design is novel, compact and reliable.

(2) Easy maintenance, fewer failures, and long equipment life.

(3) Adjust the stopping height according to the height of the bottle shape, and the applicable range of bottle height is wide.

(4) The bottle feeding and stopping process has elasticity and overload protection to prevent bottle breakage and damage to the machine.

(5) No bottle, no cork, prevent waste of cork.You can also change the sealer to aluminum pilfer cap capper head.

FAQ

Q1. How long will take for the delivery of product?

10 days for standard model, if machine in stock, will delivery immediately, customized model depend on customer requirements, usually about 20~30 days.

Q2. What's the insurance of after-sale service after purchase?

All our products, will be totally tested by QC department before delivery, with strict quality control process. The product is cost-effective during use, stable and reliable. One year warranty service for all machine, please feel free to contact us if you have any questions.

Q3. When the machine arrives at the work site, is it easy to install? How to solve the problem of quick installation and use?

All machine model with installation video, to show the installation process more intuitively, and we will provide remote video technical support to solve your doubts and ensure that your installation is correct.

Q4: During the use of the machine, how to get after-sale service?

We have professional foreign installation and commissioning engineers, which have many years of experience in foreign debugging with deeply recognized by customers. We will provide on-site installation and commissioning services for foreign customers, and we will guide your workers directly.

Q5: Will the accessories change frequently with machine?

The service life of the accessories is related to the daily maintenance. When ordering, we will give you free wearing parts and provide you with daily maintenance strategies.
