The MF Stainless Steel Liquid Filling Machine is the solution that is perfect tiny to medium-sized companies looking to streamline their filling procedure.
Products Description
Stainless steel structure: The MF automatic liquid filling machine is the solution that is perfect tiny to medium-sized companies looking to streamline their filling procedure. This revolutionary product is certainly durable made from high-quality stainless steel, ensuring a durable and hygienic solution for the liquid filling needs.
Convenient operation: This automatic liquid filling machine is not difficult to setup and make use of with user-friendly settings and a concise design. It's able to filling a number of liquids, including water, juices, natural oils, and cleansing solutions, insurance firms a maximum capability of 1000ml per fill.
Precise filling: The MF stainless steel liquid filling machine also features a nozzle this is certainly drip-free, helping to avoid spills and expel wasted product. The adjustable rate that is filling volume settings provide for exact filling, ensuring constant product amounts in each container.
Modern appearance: The MF automatic liquid filling machine is also great looking, by having a sleek and modern design that will complement any workspace along side its functional features. Its size that is compact makes well suited for companies with limited counter room, while its durable construction ensures a investment this is certainly durable.
Modular design: The MF stainless steel liquid filling machine can be simple to clean and keep, having a design that is allows that are modular comfortable use of any or all elements. This eliminates the necessity for expensive repairs or replacements, saving your business time and money to the run this is certainly long.
This automatic liquid filling machine is suitable for filling various kind of glass bottle for wine, vodka, whiskey, spirit, alcohol, soy sauce, vinegar etc.It has the advantage of no bottles no filling and with high filling accuracy. It has 12/18/24/36 nozzles for you to choose. Nice design touch screen +PLC system. It could use English and other language version. It is easy to operate and maintain. MingFeng machinery will provide you the best solution for your products. If you are interested in this kind filling machine, pls feel free to contact us.
| Description Name | Parameters | Parameters | Parameters | Parameters |
| Model | MFMFP-12 | MFMFP-18 | MFMFP-24 | MFMFP-36 |
| No. of filling heads | 12 | 18 | 24 | 36 |
| Production capacity per hour | 2000~2500bmp | 3000~4000bph | 5000~6000bph | 8000~10000bph |
| Applicable bottle height | 160~360mm, could customized | |||
| Filling accuracy | ±1.5 mm | |||
| Applicable bottleneck diameter | Φ50-Φ100, could customized | |||
| Overall dimension(L*W*H) | 1200*1200*2200mm | 1500*1500*2200mm | 1800*1800*2200mm | 2500×2350×2200mm |
| Capability(b/h) | 3000 | 4500 | 6000 | 10000 |
| Weight | 700Kg | 900KG | 1500KG | 2000kg |
| Power | 1.12 | 1.12 | 1.85 | 3 |

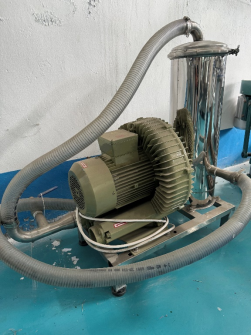

This is the negative pressure fan to blow the air out and will form a negative pressure environment for the filler tank.It is made durable stainless steel and you will easy to maintain.
This is the filling hose to let the liquid fall into the filler tanker.It is made by food grade stainless steel.
The whole machine is made by stainless steel made and it is anti-rust and easy to clean.For this filling machine can also be connected with other machines to form a production line.
Filling valve precision structure, less sealing parts, reliable and durable. And the structure is simple, disassembly, cleaning convenient.
The parts that contact with the filling liquid are made of high quality stainless steel to ensure that the filling liquid is not contaminated and meets the food hygiene standards.

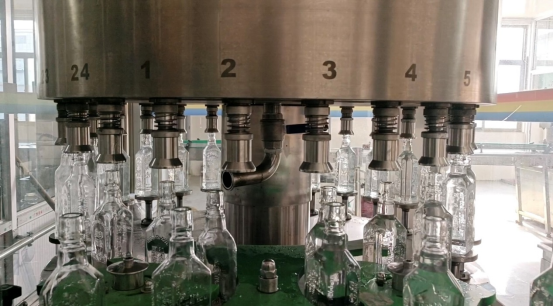

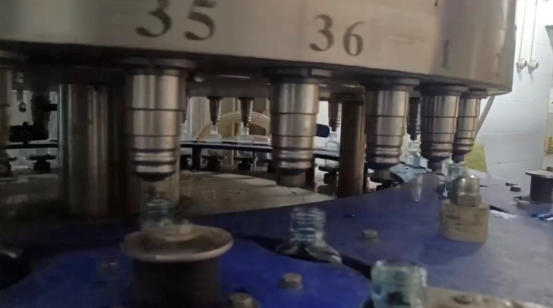

① Filling nozzle:Its quantity can be customized according to the customer's output. Conventional models are: 12/18/24/36. It adopts touch switch design, no bottle no filling, not dripping
② Bottle feeding dial:Customized according to customer's bottle size, do not pour the bottle, do not destroy the bottle
③ Negative pressure blower:Through this blower, the internal pressure of the filling machine is reduced, so that the filling machine can reduce the generation of foam and improve the filling accuracy when filling.
④ Bottle feeding auger: It is also customized according to the customer's bottle type. Through this device, the bottles are transported to the filling machine in an orderly manner.
⑤ Control System: The control system is composed of PLC and other electrical components. It is an important part of the machine with well-known brands and reliable quality. It can provide customers with a 2-year free warranty, and can also choose specific brands of electrical components according to customer needs.
⑥ Control panel: The buttons of the control panel are connected to the control system to control the machine and conveyor line switches, as well as the operating speed and height
● Low vacuum filling: avoid the foaming and leaking, and if there is defects in the bottle, filling will not be started.
● Spraying filling: Liquid flows down along the sides of the bottles to ensure the filling quality
● No bottle broken: bottle holding devices can flexibly adjust bottle location, avoiding any possible bottle damage or even machine damage.
● Long service life and easy main- tenance.
Q1. How long will take for the delivery of product?
10 days for standard model, if machine in stock, will delivery immediately, customized model depend on customer requirements, usually about 20~30 days.
Q2. What's the insurance of after-sale service after purchase?
All our products, will be totally tested by QC department before delivery, with strict quality control process. The product is cost-effective during use, stable and reliable. One year warranty service for all machine, please feel free to contact us if you have any questions.
Q3. When the machine arrives at the work site, is it easy to install? How to solve the problem of quick installation and use?
All machine model with installation video, to show the installation process more intuitively, and we will provide remote video technical support to solve your doubts and ensure that your installation is correct.
Q4. During the use of the machine, how to get after-sale service?
We have professional foreign installation and commissioning engineers, which have many years of experience in foreign debugging with deeply recognized by customers. We will provide on-site installation and commissioning services for foreign customers, and we will guide your workers directly.
Q5. Will the accessories change frequently with machine?
The service life of the accessories is related to the daily maintenance. When ordering, we will give you free wearing parts and provide you with daily maintenance strategies.
